Installation instructions

Quick Guide

Plug screens into gauge controller
Configure through cli
Plug gauge controller into flight controller
Enjoy

Detailed Guide

Controller layout

Plug screens into gauge controller.

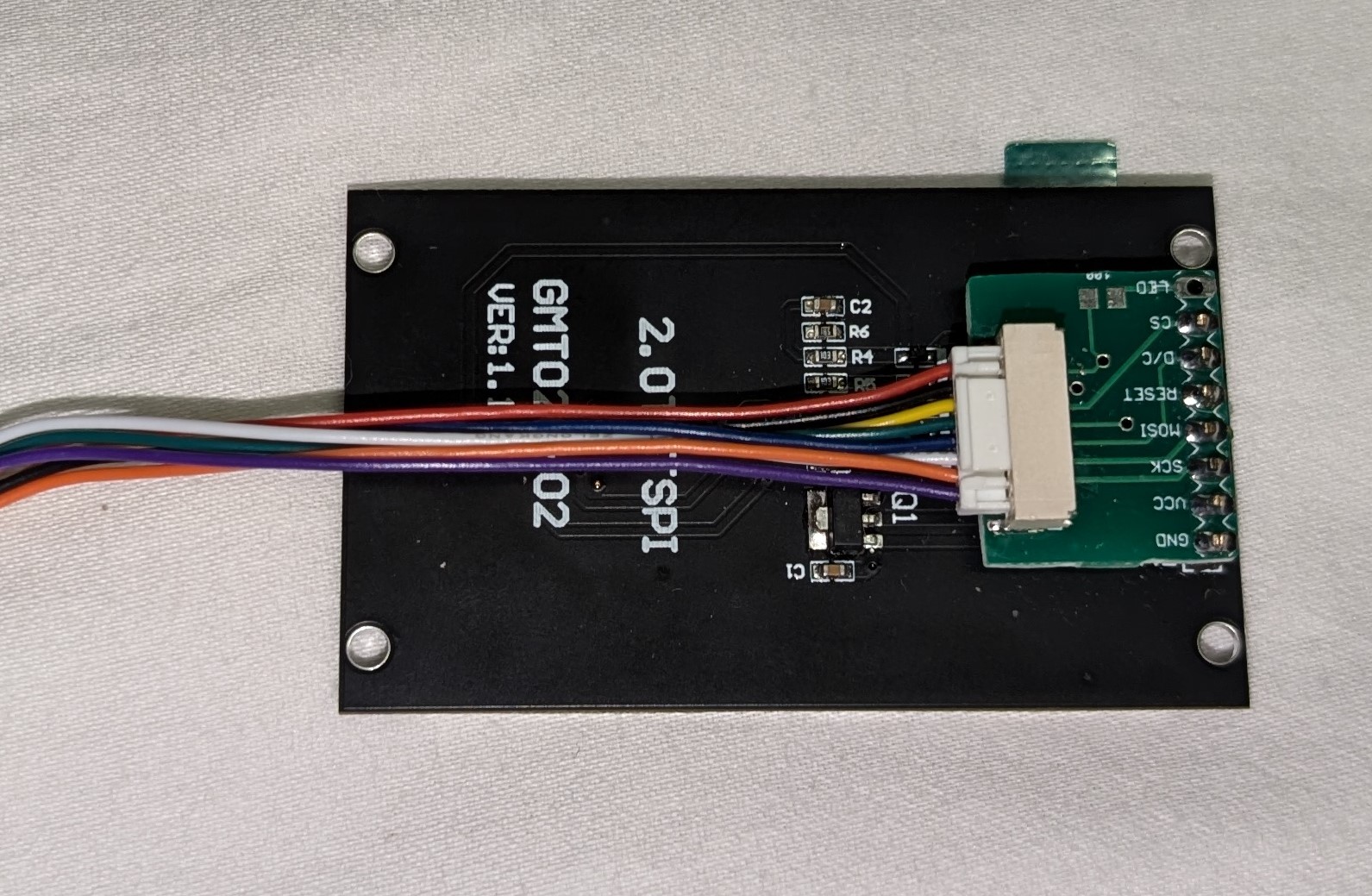

Plug an 8 pin cable into the screen. These are GH connectors, so they click in.

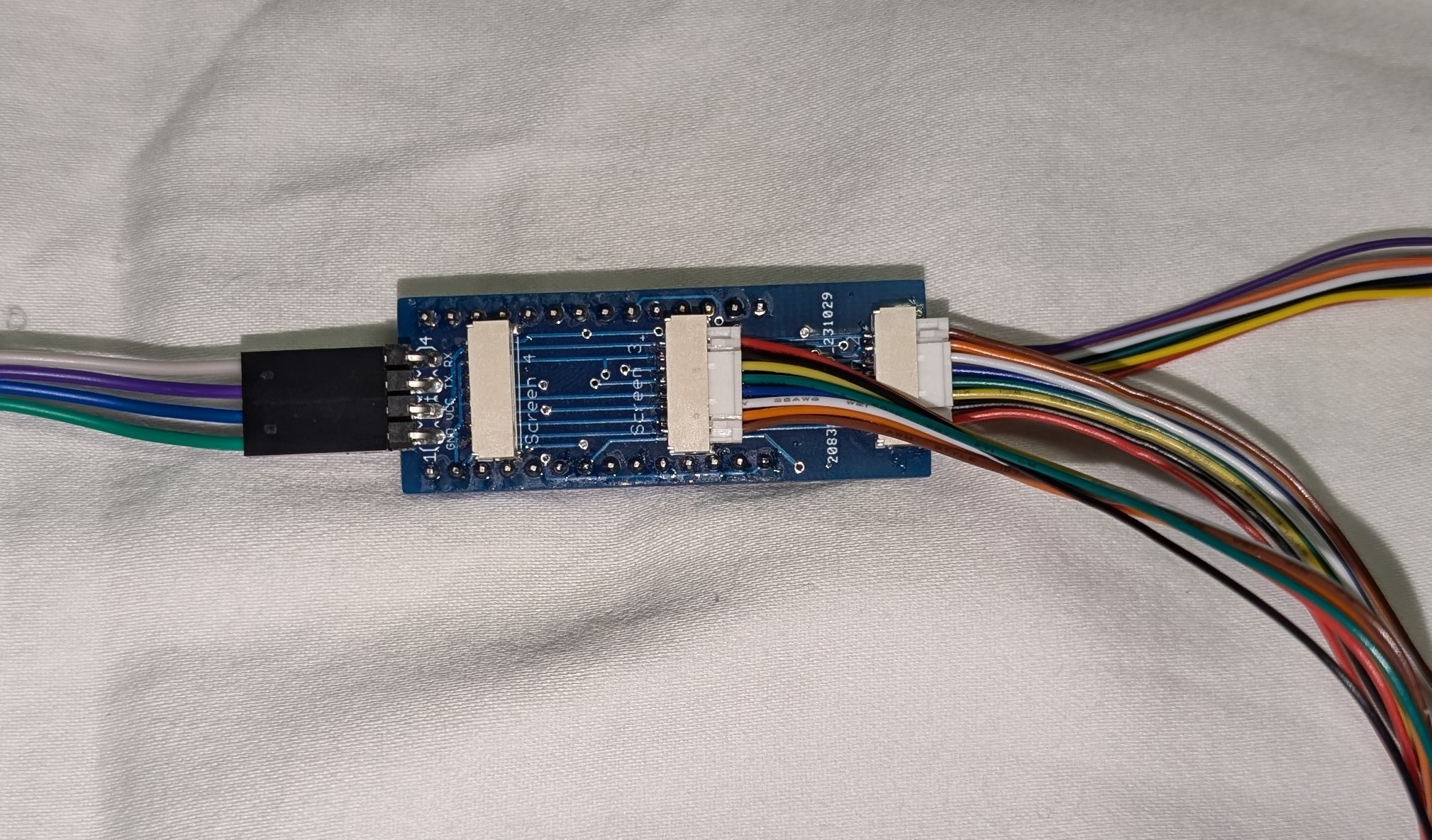

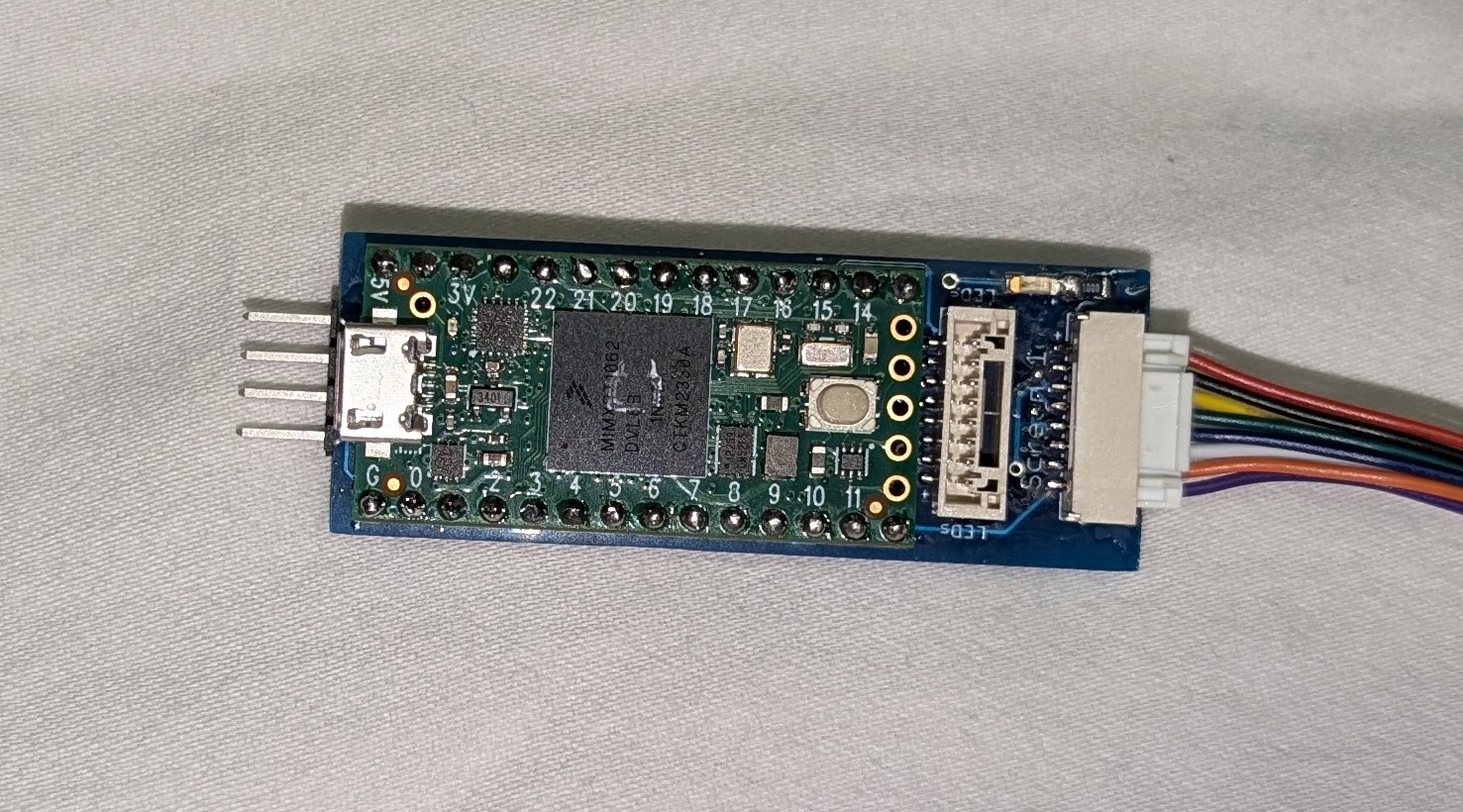

Plug the other end into the controller. Plug in up to 4 screens, in any order and any plug.

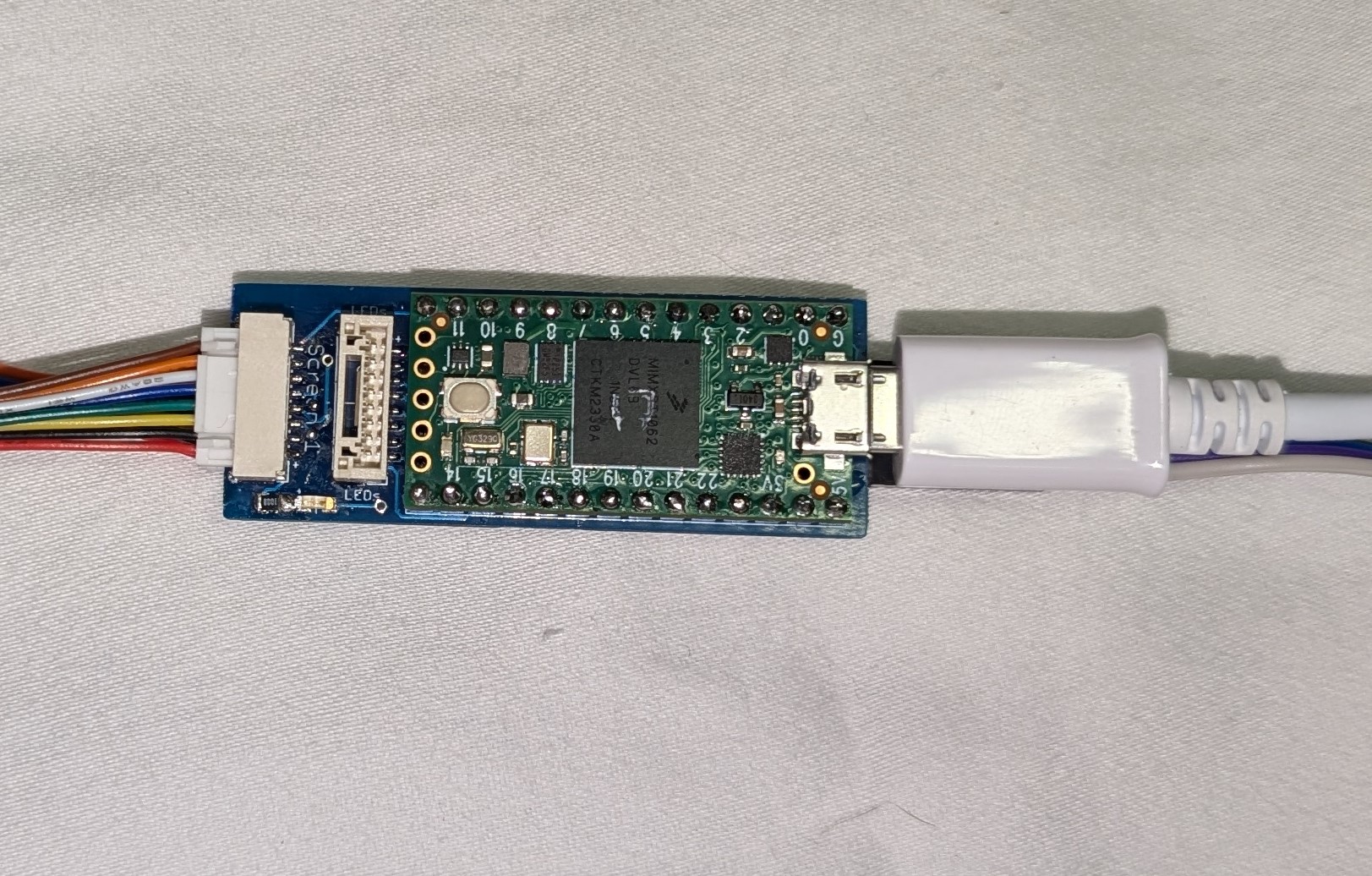

Plug in USB connector and hook up to a computer.

Open a terminal program. Tera Term or Putty are common open source terminal programs.
The micro has a native USB controller, so it will work with any serial speed and data format.

Use the cli to configure the controller.
Instructions for the CLI are here.

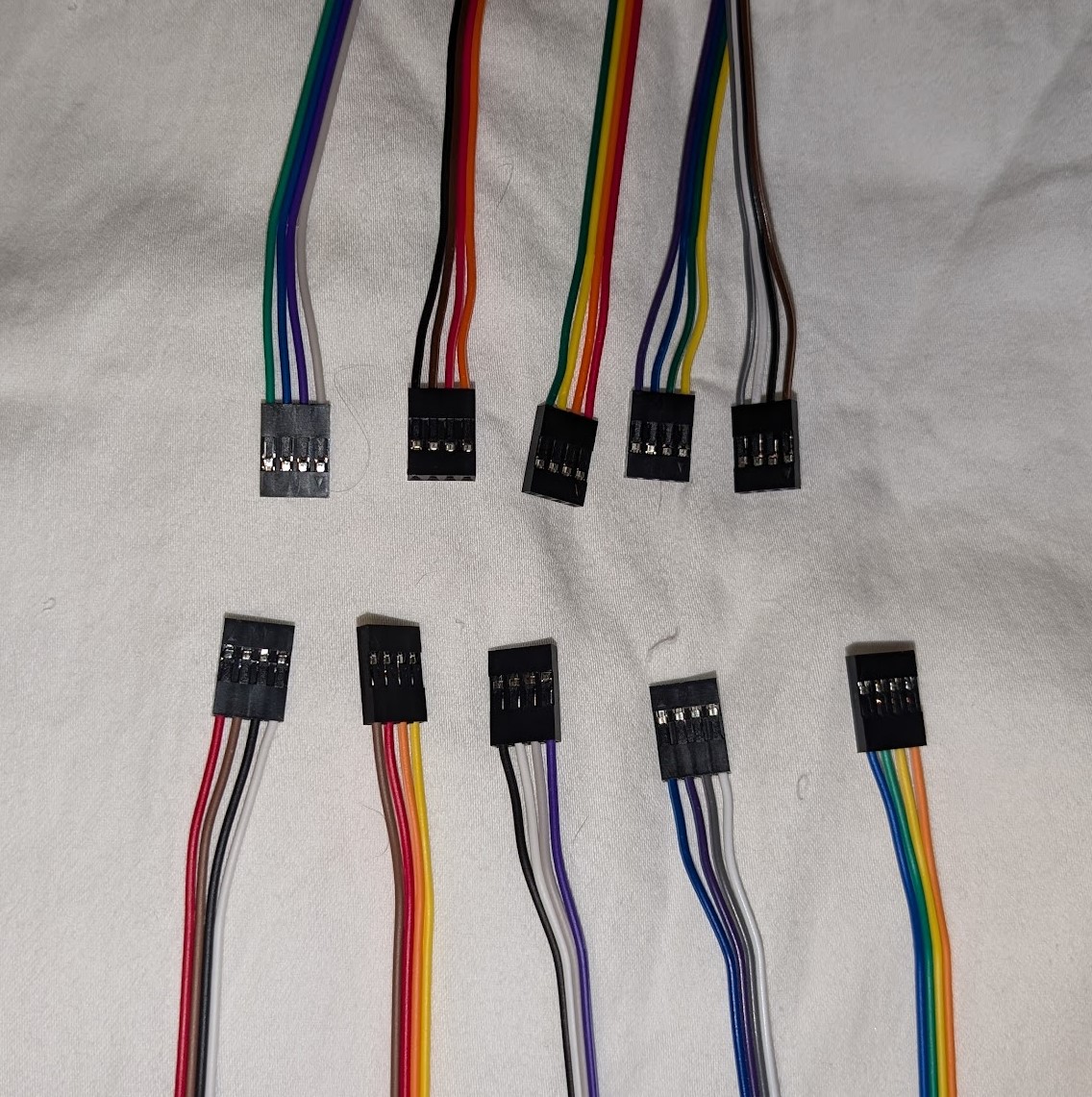

Plug the 4 pin cable into the controller*

*note - the 4 pin cables are random colors. Keep track of which colors are on which pins.

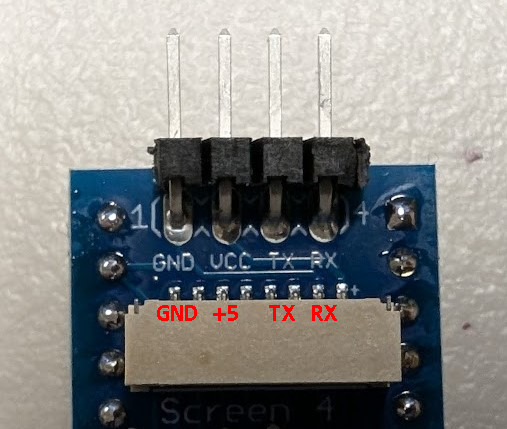

The pin order on the controller is GND, VCC, Tx, Rx. (they are silk screened on the controller)
The pin order of the end that plugs into the flight controller is GND, VCC, Rx, Tx
If your flight controller has those 4 pins in that order, you can plug it in as it is.
Most of Matek's airplane flight controllers have several rows of those pins in that order.

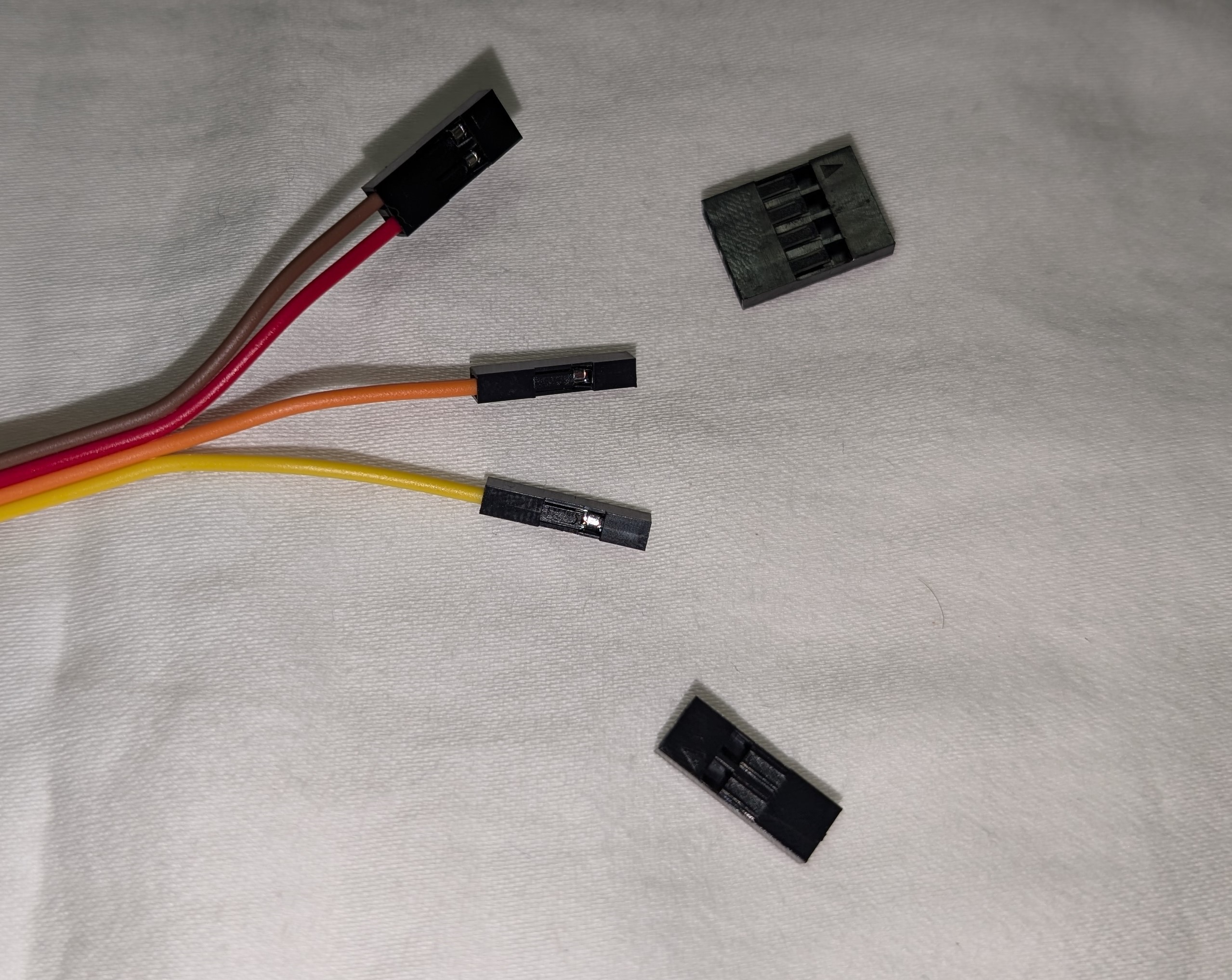

If your flight controller has the pins in a different order or not in a row, use the included cable ends to separate the wires.

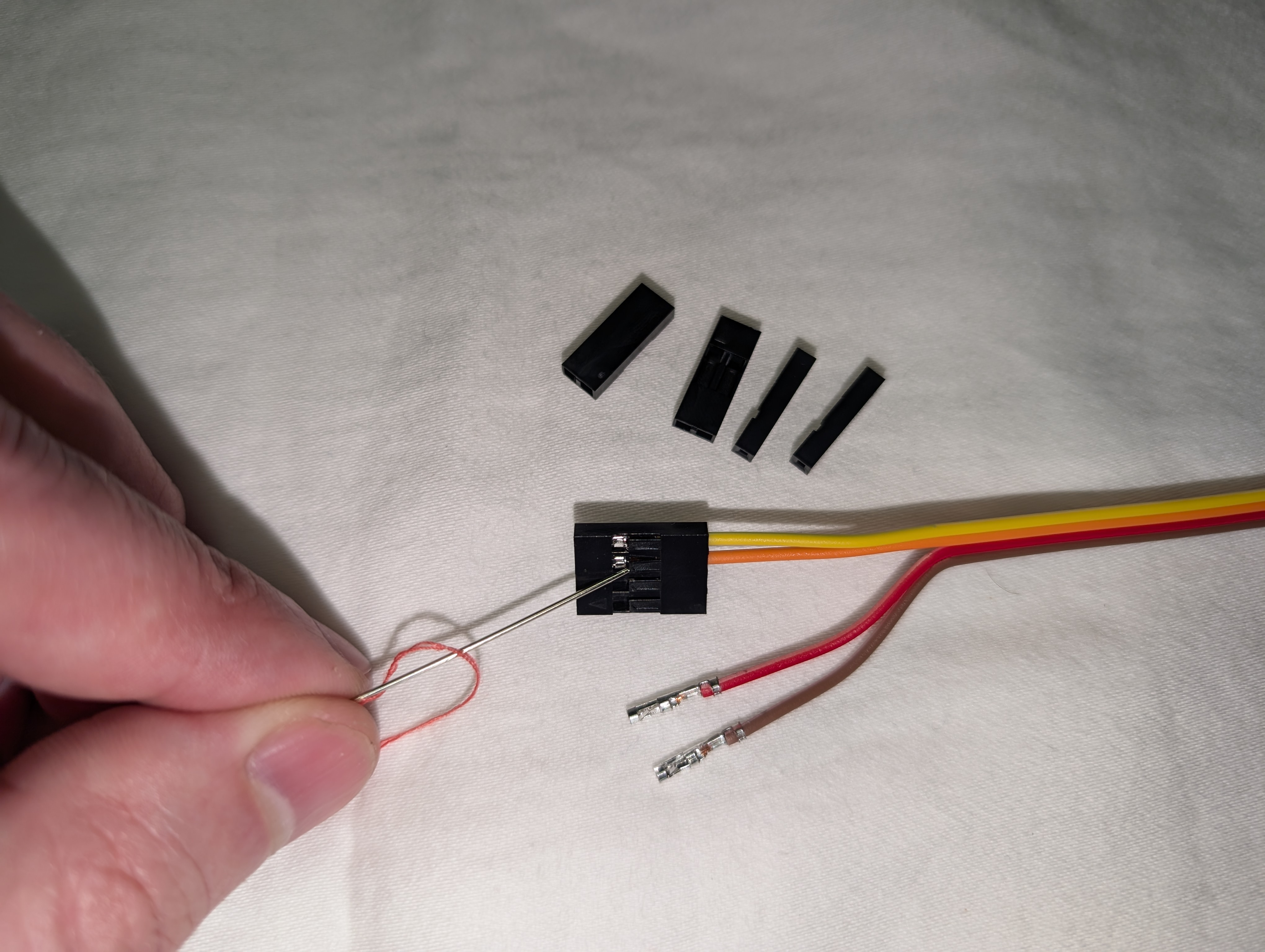

With a needle, or other sharp item, gently lift the clip until you can slide the ends out.
Clip on the new cable ends to make either 2 - 2 pin connectors or a 2 pin and 2 single pin connectors.

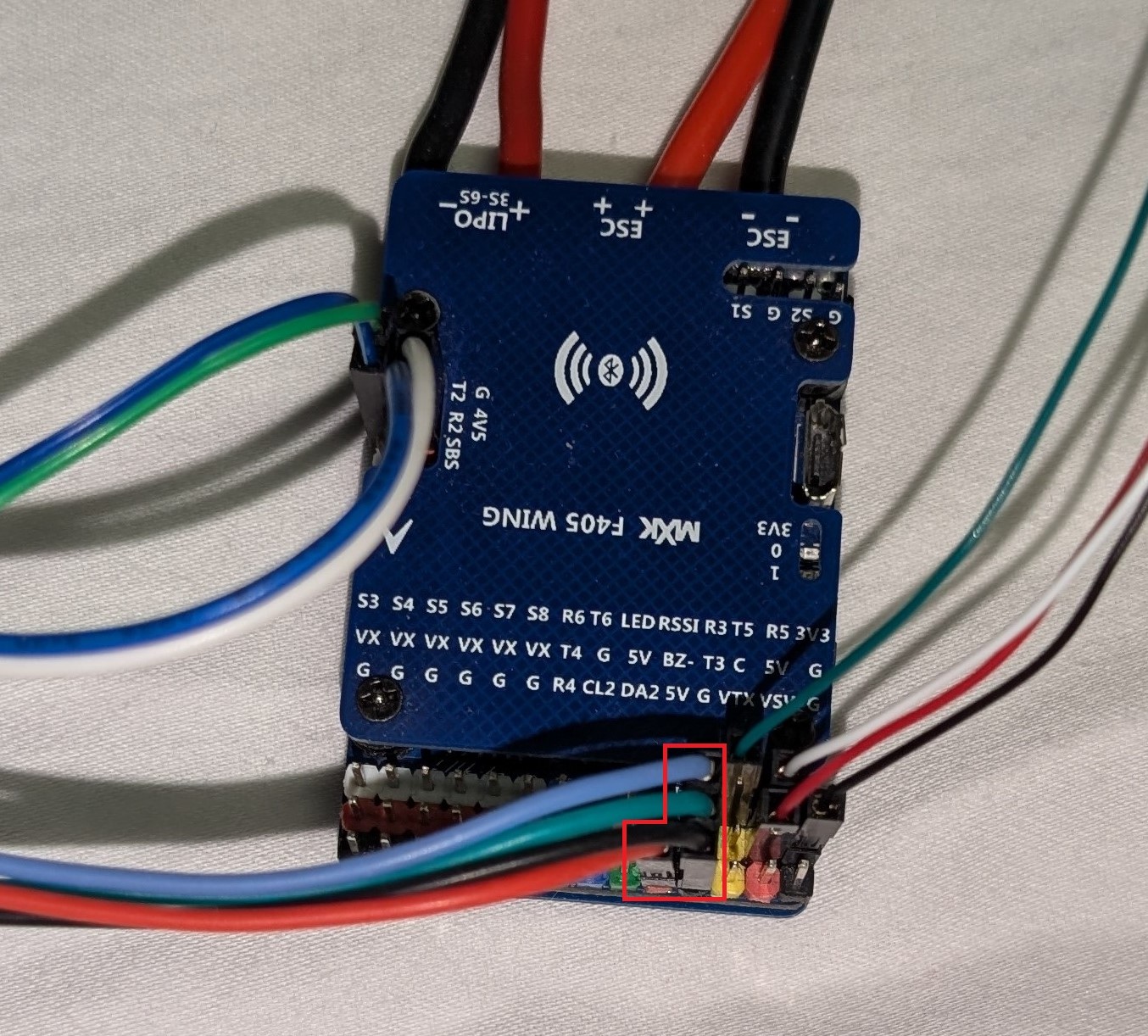

Plug cable into flight controller

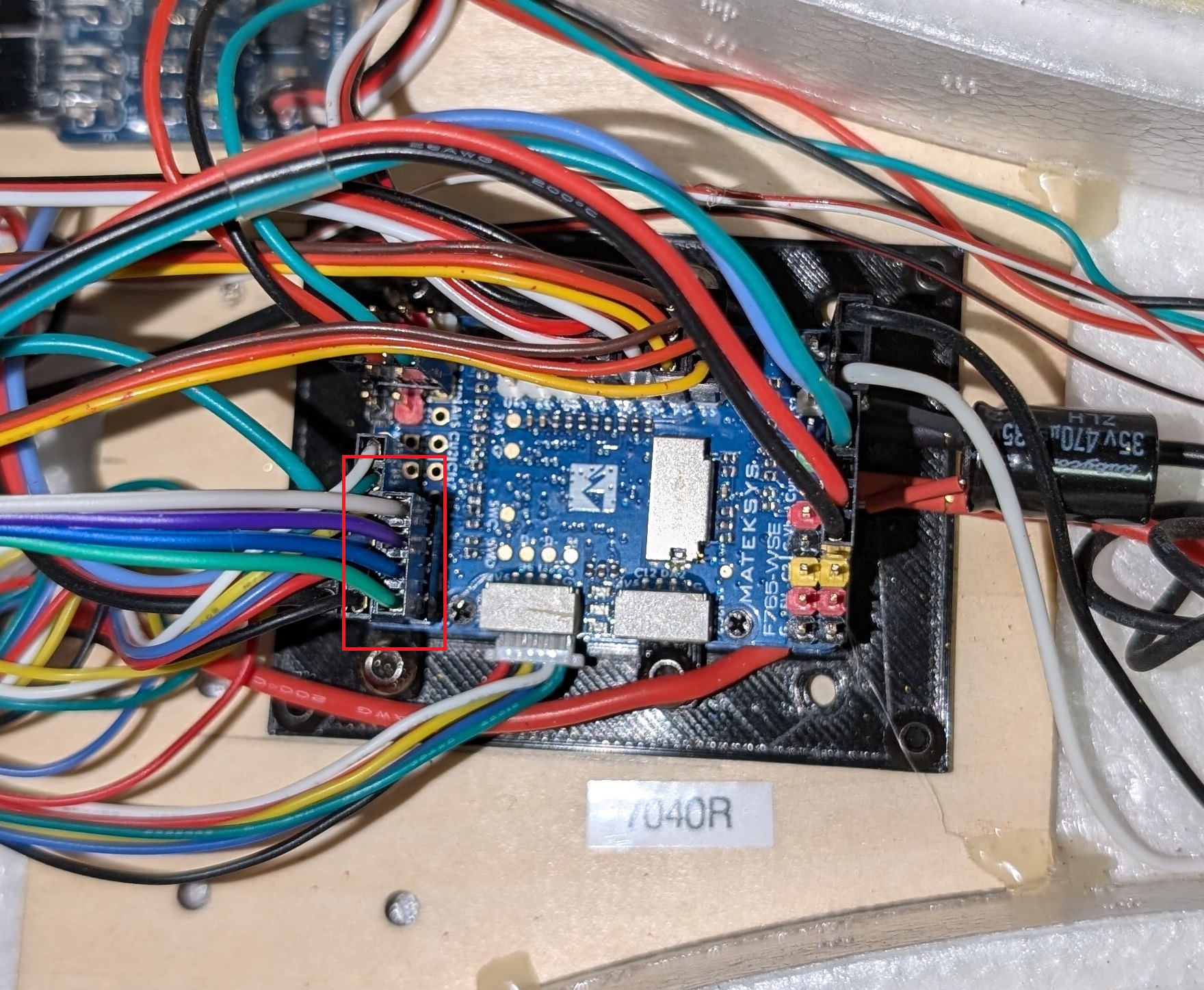

Plug the cable into your flight controller into power and uart pins.

Configure iNav

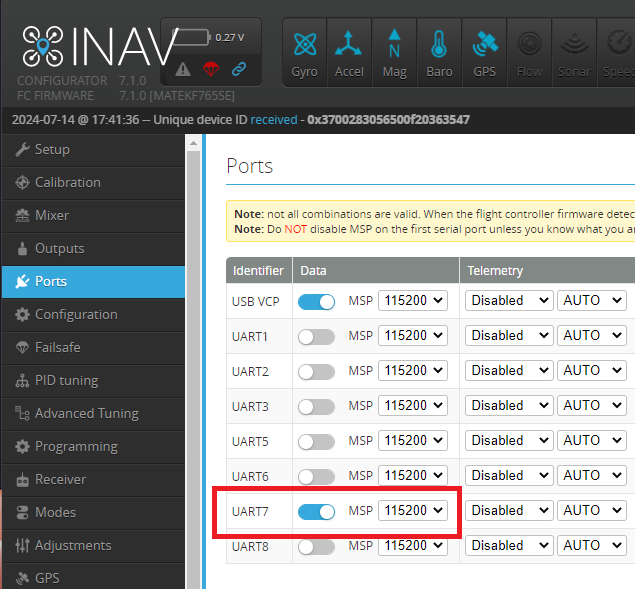

In iNav configurator, wet your uart port to MSP protocol and set the speed to 115k and save.
*note - iNav only allows 3 ports to be set to MSP (I had to look at the code to figure this out)
